Series: BVA
Part Number: BVA-24GS24
Description: DC Power Supply - Single Output Linear Regulated, Voltage: 24 Volts, 576VA, Input : 110/117/220/230- 240VAC, DC Output : 24V @ 24A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 576VA |
| Status | Active |
| Input | 110/117/220/230-240VAC |
| DC Output | 24V @ 24A |
| Case | GS |
| Voltage | 24 Volts |
| Size/Dimension(L x W x H) | 15.7 x 11 x 6.5 Inch |
| Weight (lbs) | 10.0 |
| UL Recognized | File # E181899 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |

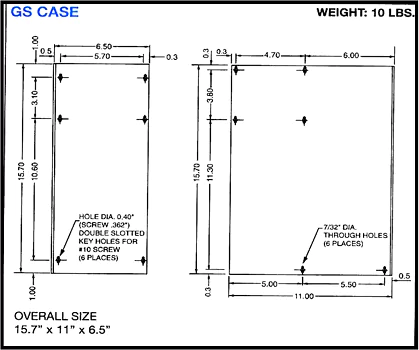

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | Case Size | L | W | H | Weight (lbs) | |||
| 576VA | BVA-24GS24 | GS | 15.7 | 11.00 | 6.5 | 10.0 | |||
Sechmatics
