Series: BVA
Part Number: BVA-56D12T1
Description: DC Power Supply - Triple Output Linear Regulated, Voltage: 30 Volts, 30VA, Input : 110/117/220/230-240VAC, Output 1 : 5V @ 6A, Output 2 : 12V @ 1A, or 15V @ 1A, Output 3 : -12V @ 1A, or -15V @ 1A, or -5V @ 0.4A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications
| Type | Description |
|---|---|
| VA Rating | 30VA |
| Status | Active |
| Input | 110/117/220/230-240VAC |
| Output 1 | 5V @ 6A |
| Output 2 | 12V @ 1A, or 15V @ 1A |
| Output 3 | -12V @ 1A, or -15V @ 1A, or -5V @ 0.4A |
| Case | DT |
| Voltage | 30 Volts |
| Size/Dimension(L x W x H) | 9.00 x 4.87 x 3.28 Inch |
| Weight (lbs) | 7.5 |
| UL Recognized | File # E181899 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHs | RoHs3 COMPLIANT |
| REACH Status | REACH Uneffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |

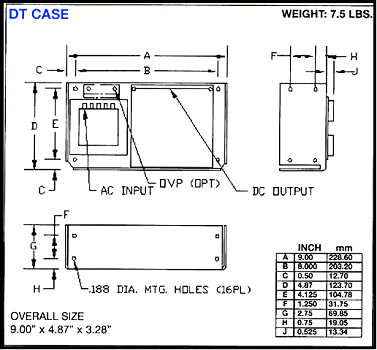

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30VA | BVA-56D12T1 | DT | 9.00 | 8.000 | 0.50 | 4.87 | 4.125 | 1.250 | 2.75 | 0.75 | 0.525 | 7.5 |
Sechmatics
